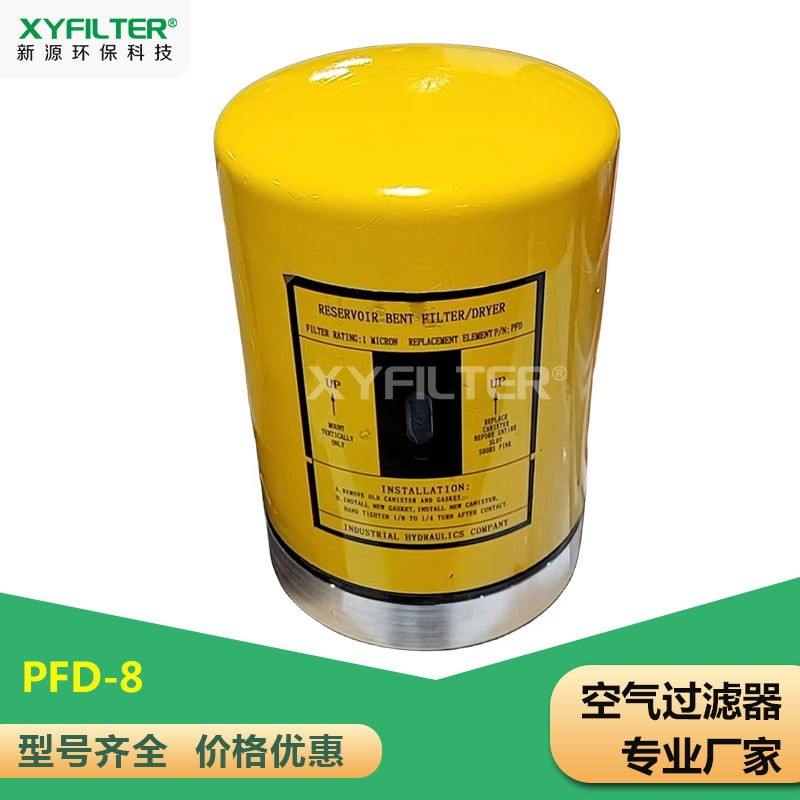

PFD‑8 Reservoir Breather

Product Description

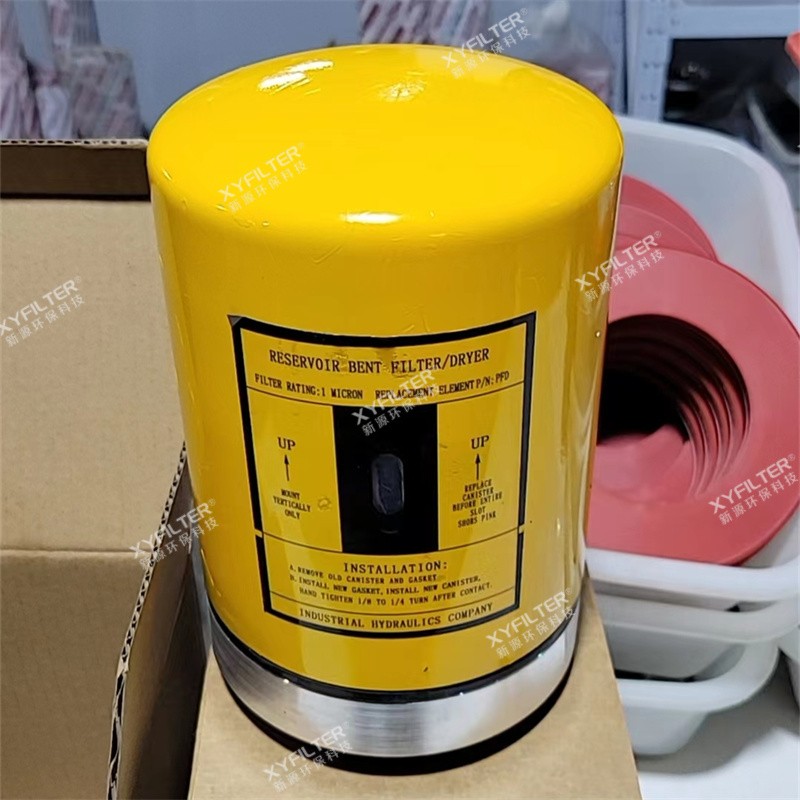

The PFD-8 desiccant tank breather features a vertical spin-on design with an integrated yellow canister housing a moisture-absorbing desiccant bed and a 1 μm filter layer. During tank breathing cycles, all incoming air passes through the breather — moisture is captured by the desiccant while solid particles are trapped by the filter media. This prevents water vapor and dust from entering the reservoir, protects hydraulic oil from degradation and internal corrosion, and extends the service life of both the fluid and system components. A built-in status viewing window allows visual inspection of desiccant saturation through color change, enabling timely maintenance and replacement.

Technical Specifications

Key Features

· Dual Protection — Desiccant absorbs moisture; filter media traps dust and particulate contaminants

· Visual Inspection Window — Allows direct monitoring of desiccant saturation status for simplified maintenance

· Spin-On Design — Quick and easy installation and replacement; intended for vertical operation only

· 1-Micron Fine Filtration — Effectively blocks contaminants from entering the oil system

Application Areas

· Hydraulic station oil tanks

· Gearboxes and lubricant reservoirs

· Hydraulic equipment in power plants and steel mills

· Construction machinery and wind-power hydraulic systems

· Ventilation protection for industrial oil-storage tanks
