54509435 (D8/13285) Ingersoll Rand Screw Air Compressor Built-in Oil Separator Element

Product Introduction

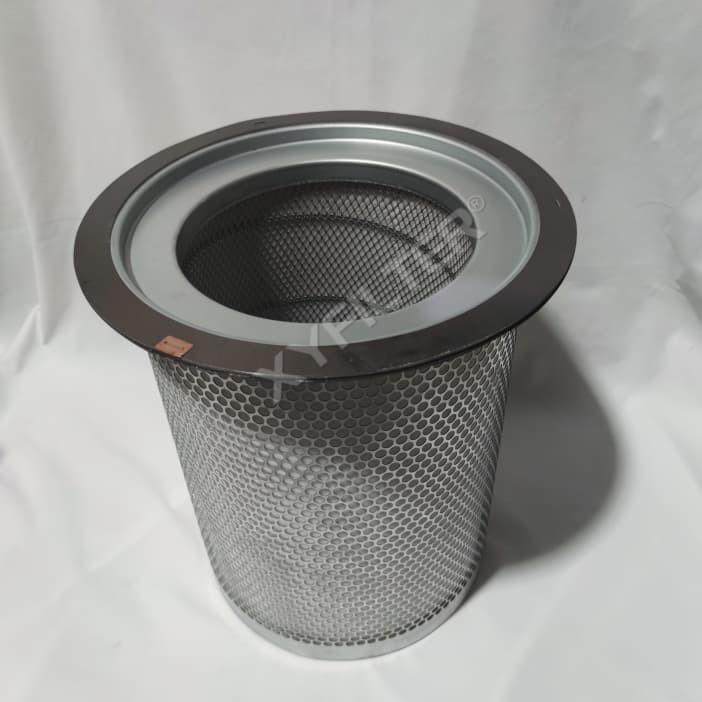

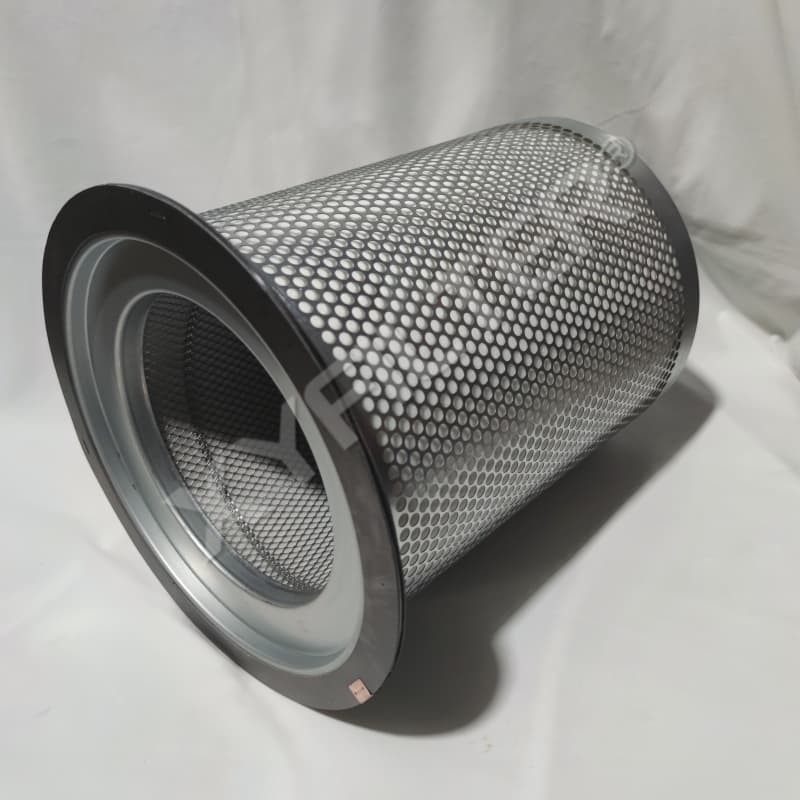

This 54509435 oil separator element is a built-in oil separator core for Ingersoll Rand screw air compressors. As a core separation component installed after the compressor host, it coalesces and separates lubricating oil mist in compressed air, recovers oil droplets back to the oil tank, lowers the oil content of compressed air, ensures clean downstream air supply and reduces oil contamination of pipelines and pneumatic equipment. Its dimensions and flange sealing structure are consistent with original parts for direct replacement. It maintains the rated residual oil content of compressor discharge air and extends the service life of downstream

 precision filter elements.

Product Advantages

1. Precisely matched mounting dimensions for Ingersoll Rand air compressors with identical flange and sealing structure. Direct replacement for original 54509435 (D8/13285), no modification required.

2. Multi-layer gradient glass fiber coalescing filter media delivers high coalescing efficiency and stably controls residual oil content of compressed air.

3. High-strength perforated inner and outer supporting mesh, resistant to airflow impact; filter layer is not easy to deform or damage for long service life.

4. Composite flange sealing gasket, lube oil resistant and high temperature resistant, effectively prevents short-circuit leakage of compressed air.

5. Well-designed pleated filter media structure provides large dirt holding capacity and slow pressure differential rise, lowering energy consumption of air compressor operation.

6. Domestic alternative with performance meeting OEM specifications, greatly reducing air compressor maintenance costs.

Technical Parameters

· Filtration Performance: Oil mist separation, residual oil content ≤3ppm

· Filter Media: Superfine glass fiber coalescing composite media

· Seal: High-temperature resistant composite sealing gasket

· Medium: Oil-laden compressed air, air compressor lubricating oil

· Nominal Pressure: Max working pressure 1.6MPa

· Executive Standard: GB/T 13275, General fixed reciprocating piston air compressors; GB/T 35274, Compressed air filters

Application Scope

Applied to factory air compressor stations to supply low-oil clean compressed air for working conditions such as pneumatic equipment, spraying, chemical industry and laser cutting.
