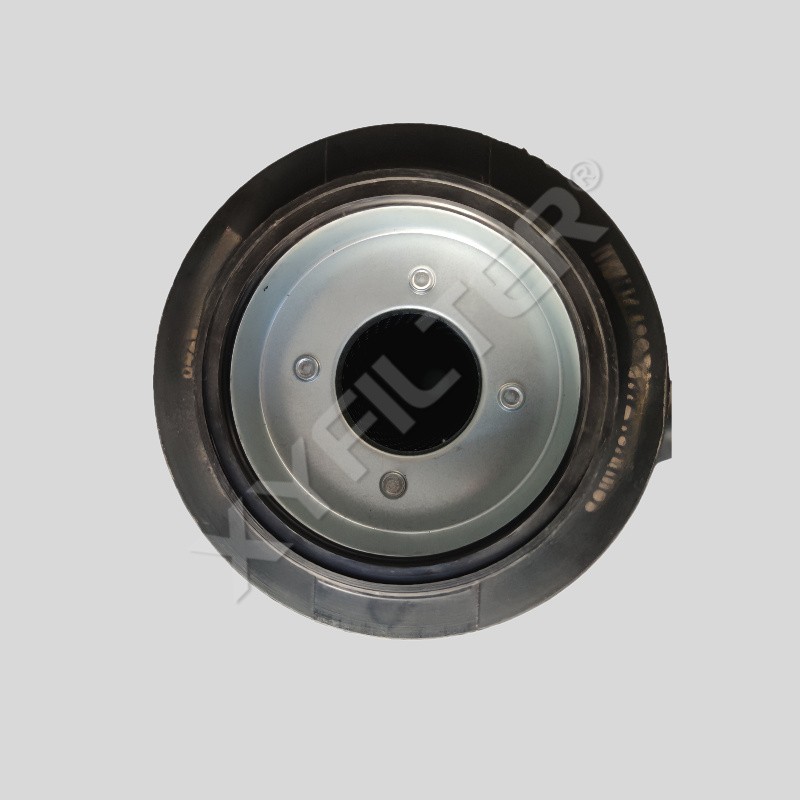

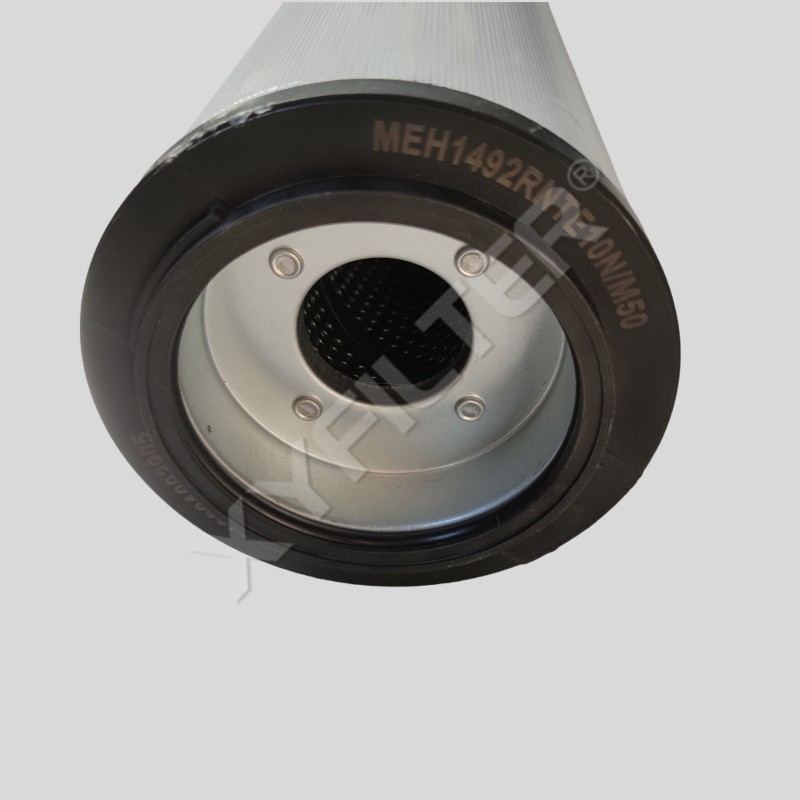

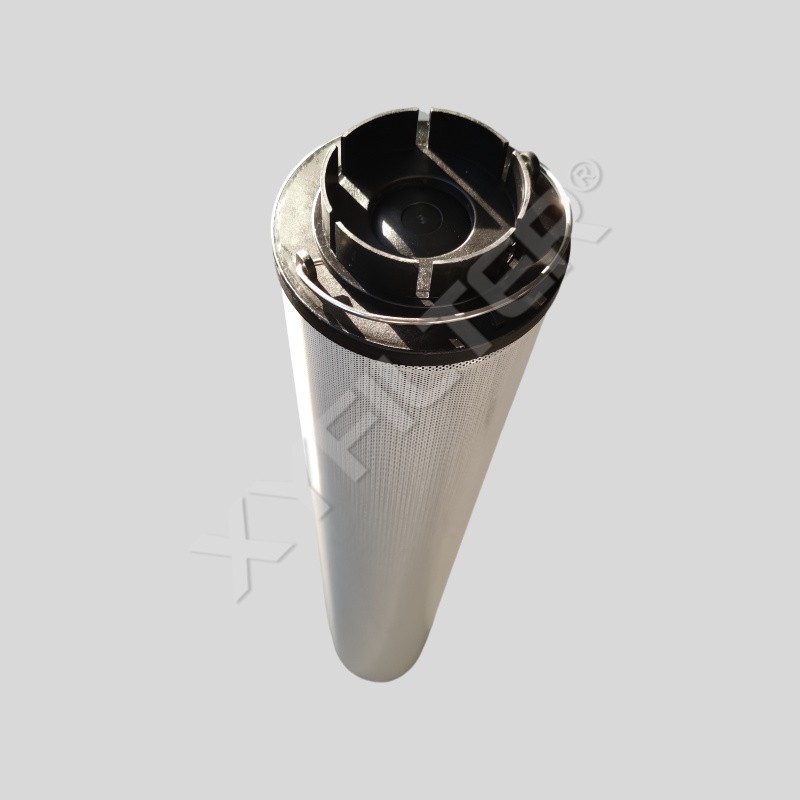

MEH1492RNTF10N/M50 Wind Turbine Gearbox Lubricating Oil Filter Element

Product Introduction

MEH1492RNTF10N/M50 Wind Turbine Gearbox Lubricating Oil Filter Element is specially designed for the lubrication system of wind turbine gearboxes. It adopts high-performance glass fiber media to remove metal wear particles and solid contaminants from lubricating oil, protecting precision transmission components including gears and bearings. This domestic replacement filter element can directly substitute the original OEM element.

Product Advantages

✅ High-precision glass fiber media with large dirt holding capacity and stable filtration accuracy

✅ Reinforced multi-layer metal support screens, resistant to pressure difference and impact, suitable for alternating working conditions of wind turbines

✅ High and low temperature resistant seals, reliable sealing under harsh environments to prevent oil bypass

✅ Replicated OEM dimensions, excellent interchangeability and easy on-site installation & replacement

✅ Anti-fatigue structure, suitable for long-term continuous operation of wind turbines and extends gearbox service life

Technical Parameters

· Filtration Accuracy: 10μm

· Filter Media: Glass fiber with inner and outer metal support screens

· Seal: Oil & low temperature resistant nitrile rubber sealing ring

· Applicable Media: Wind turbine gearbox lubricating oil, hydraulic oil

· Nominal Pressure: ≤1.6MPa

 · Implementation Standard: GB/T 14041, Hydraulic filter element performance test method

Application Scope

Mainly used for lubrication and filtration systems of wind turbine gearboxes. It is also applicable to large industrial gearboxes and heavy-duty transmission lubrication equipment. It removes metal wear particles and solid contaminants in oil to ensure stable operation of the transmission system.
