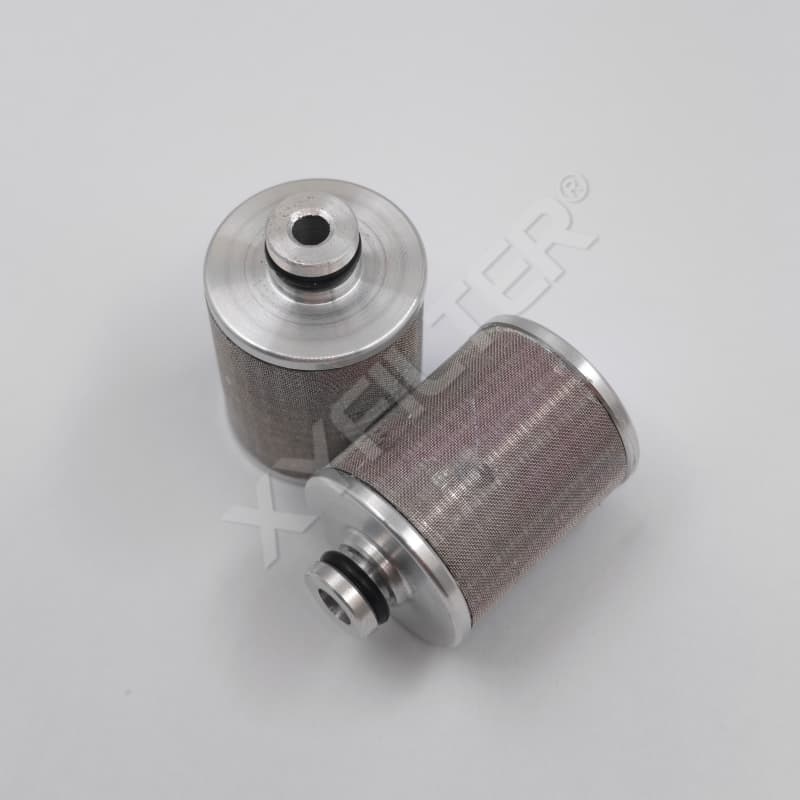

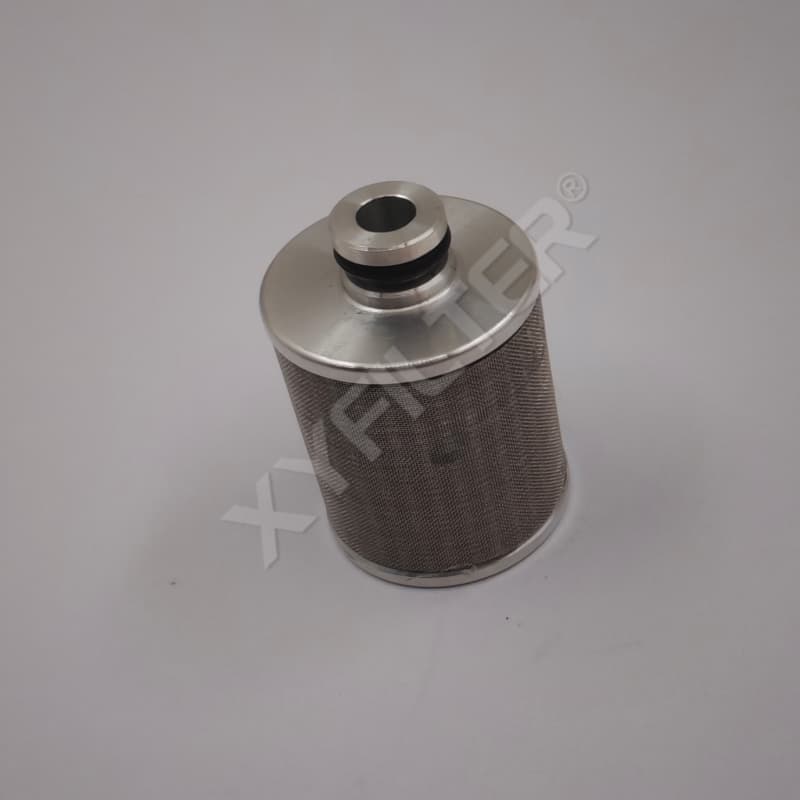

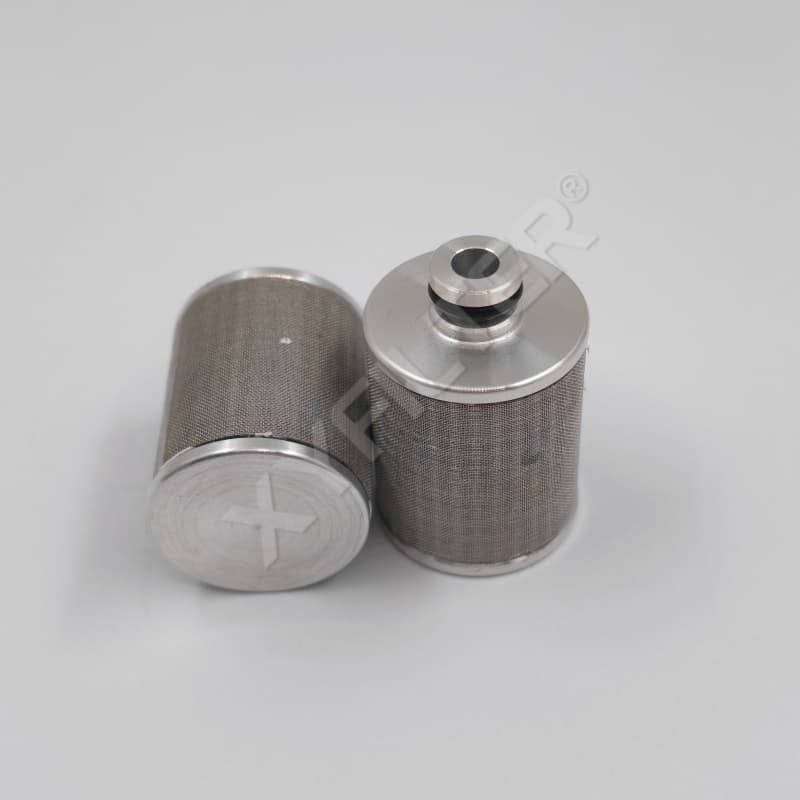

SVA9 Stainless Steel Sintered Mesh Filter Element for Electro-Hydraulic Converter

Product Description

The SVA9 stainless steel sintered mesh filter element is specially matched for electro-hydraulic converters. Made of stainless steel sintered mesh media, it filters fine contaminants in oil, protects the precision spool of electro-hydraulic converters and prevents sticking. It ensures stable and responsive operation of the electro-hydraulic control system. Customization is available.

Product Advantages

✅ Integrally formed stainless steel sintered mesh with uniform pores and stable filtration accuracy

✅ High strength, resistant to pressure differential, oil and corrosion; reusable after cleaning

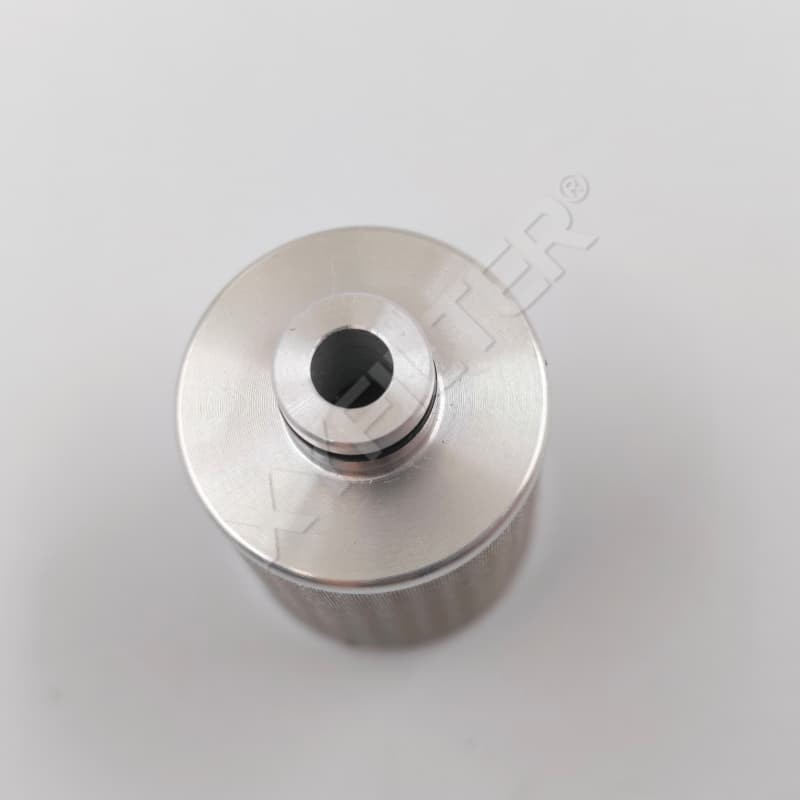

✅ Precision external thread connector with O-ring for reliable sealing and zero medium leakage

✅ Compact size, fits original mounting position of SVA9 electro-hydraulic converter with excellent interchangeability

✅ No fiber shedding from filter media to avoid contamination of precision servo components

Technical Parameters

· Filtration Accuracy: Customizable

· Filter Media: 316L / 304 stainless steel sintered mesh

· Seal: Oil-resistant fluororubber O-ring

· Applicable Media: Fire-resistant hydraulic oil, hydraulic oil

· Nominal Pressure: ≤2.5 MPa

· Executive Standard: JB/T 10410 Industrial Sintered Metal Filter Elements

Application Scope

Mainly used for pre-filtering of SVA9 electro-hydraulic converters and servo valves in power plants. Also applicable to various precision servo control systems. It removes fine solid particles in oil to prevent servo valve spool sticking and guarantee safe and stable operation of electro-hydraulic control systems.
