ZNGL02011801 Pleated Filter Element for Hydraulic Oil Station Filter

Product Description

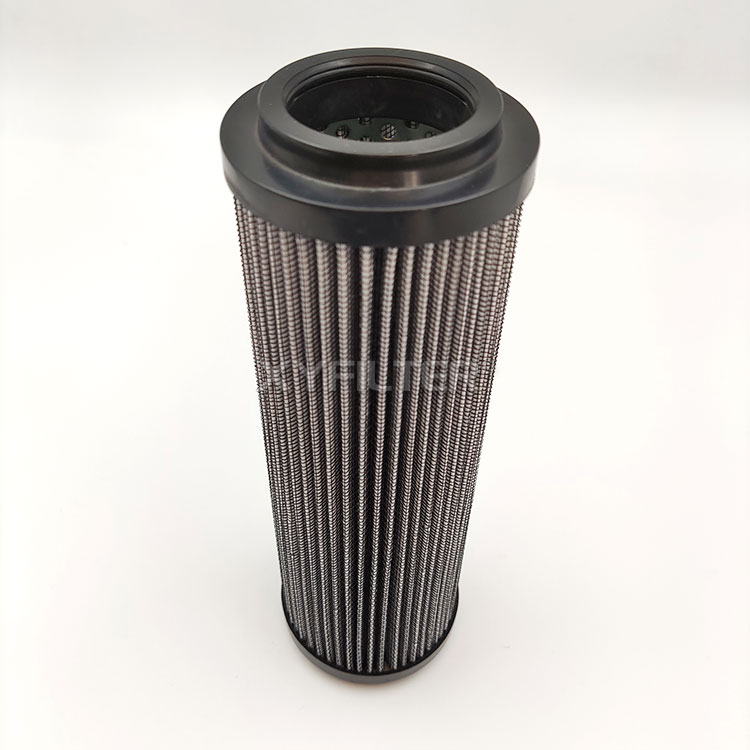

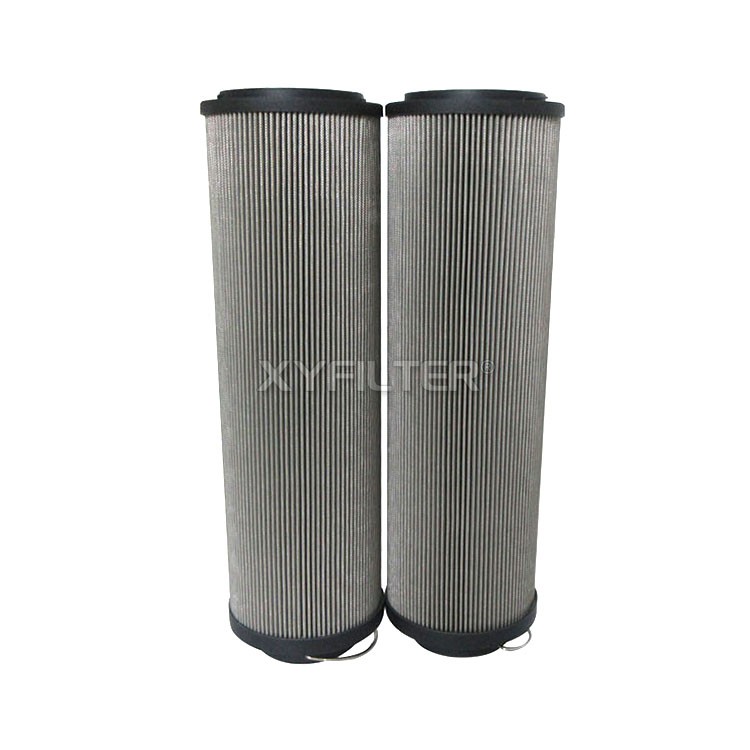

ZNGL02011801 is a pleated hydraulic filter element matched for hydraulic oil stations. It adopts a composite structure with inner fiberglass and outer stainless steel protective mesh, featuring a filtration accuracy of 10μm and acid resistance. It can operate stably within the temperature range of 1℃～110℃ with a maximum working pressure differential of 32MPa. It is mainly used to remove solid contaminants such as metal wear particles and dust in hydraulic oil, reduce oil contamination level, minimize wear of precision components including pumps and valves, and ensure safe and stable operation of the entire hydraulic oil station.

Product Advantages

Dual-layer composite protective structure: Inner fiberglass with strong support from outer stainless steel mesh. The filter layer resists deformation and damage under high-pressure working conditions. Large filtration area: Pleated design delivers large effective filtration area and high dirt holding capacity with slow pressure differential rise, extending filter service life. Acid and corrosion resistance: Excellent chemical stability of filter media, suitable for oil conditions with mild acidity for wider application scenarios. High pressure bearing capacity: Maximum working pressure differential of 32MPa, resistant to pressure impact, compatible with high-pressure hydraulic oil station systems. Wide operating temperature range: Stable operation from 1℃ to 110℃, meeting equipment requirements for cold/hot start-stop and continuous operation. Good oil flow performance: 50mm inlet and outlet diameter for smooth flow and low system resistance without interfering with hydraulic oil circulation.

Technical Parameters

· Model: ZNGL02011801

· Filter Type: Pleated Filter Element

· Filter Media: Inner fiberglass, outer stainless steel mesh

· Filtration Accuracy: 10μm

· Operating Temperature: 1℃~110℃

· Max. Working Pressure Differential: 32MPa

· Feature: Acid resistant

· Applicable Media: Oils (Hydraulic Oil)

· Executive Standard: GB/T20080

Application Scope

Suitable for circulation filtration and bypass filtration systems of various industrial hydraulic oil stations. It filters metal debris and solid particulate impurities in hydraulic oil to protect precision hydraulic components such as hydraulic pumps, control valves and hydraulic cylinders. It can be used in power plants, metallurgy, mining, construction machinery and other industries for hydraulic oil purification scenarios with risk of mild acid corrosion.
