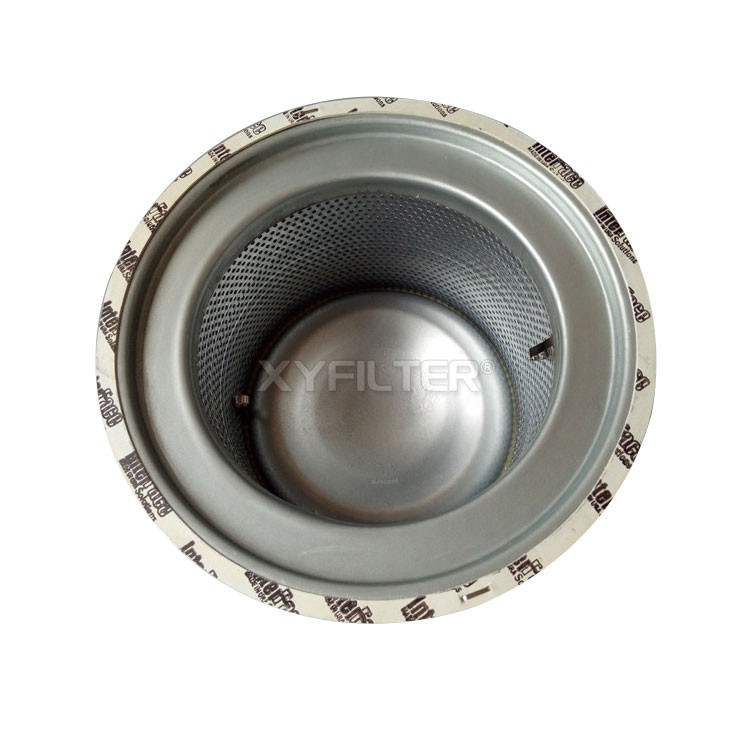

Replacing Ingersoll Rand Air Compressor Oil Gas Seperator Filter Element 54601513

Product Introduction
The Xinyuan Environmental Protection Oil Gas Separation Filter Element is used to filter out moisture, oil mist impurities, etc. in compressed air, ensuring the cleanliness of the air source, improving the quality of compressed air, and ensuring the safe and efficient operation of the system. The filter material is made of ultra-fine glass fiber composite filter material from HV Company and Lydall Company in the United States. The mist like oil gas mixture in compressed air can be almost completely filtered out when passing through the oil separation core
Product Features
1. Adopting stainless steel frame, with excellent structural performance, corrosion resistance, high porosity and excellent permeability, low pressure loss, and large flow rate
2. Large pollution capacity, high filtration accuracy, long replacement cycle, high welding strength, and low airflow resistance
3. The contact area of the folded wave filter layer and transverse filter material is large, the filtering effect is good, the filtering rate is high, and it can be welded and processed
4. There is no dressing or glue on the filter element, with good chemical compatibility
Technical Parameter
1. Filtering accuracy: 0.1 μ m
2. Compressed oil content less than 3ppm
3. Filtering efficiency: 99.999%
4. The service life can reach 4000-6000h
5. Initial pressure difference ≤ 0.02Mpa
6. The oil gas separator filter element is made of high-quality composite fibers imported from the United States
