10 inch 222 Triangle Sintered Metal Mesh Pleated Filter Element

Product Introduction

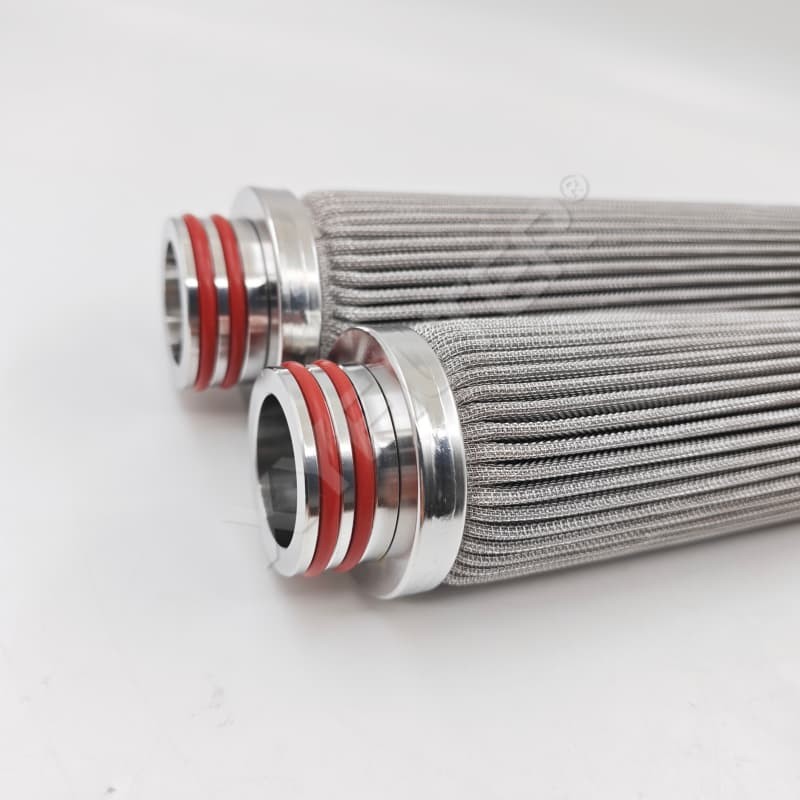

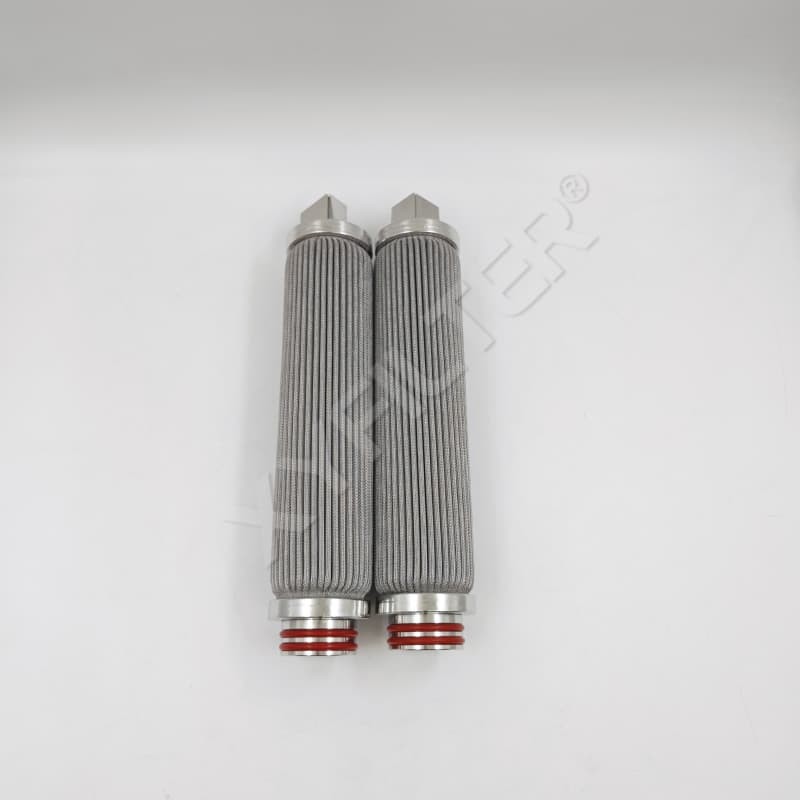

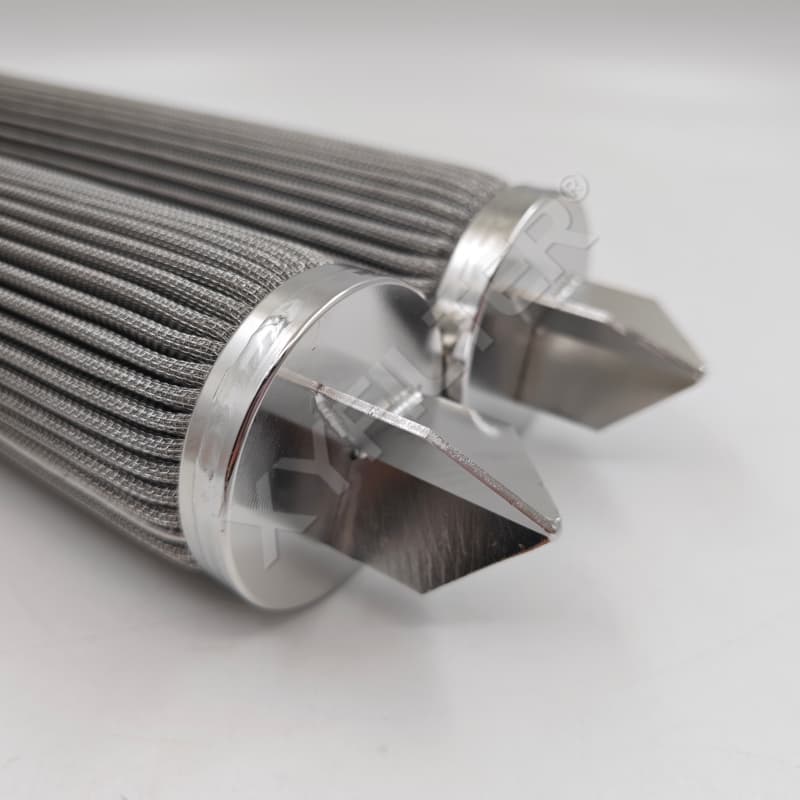

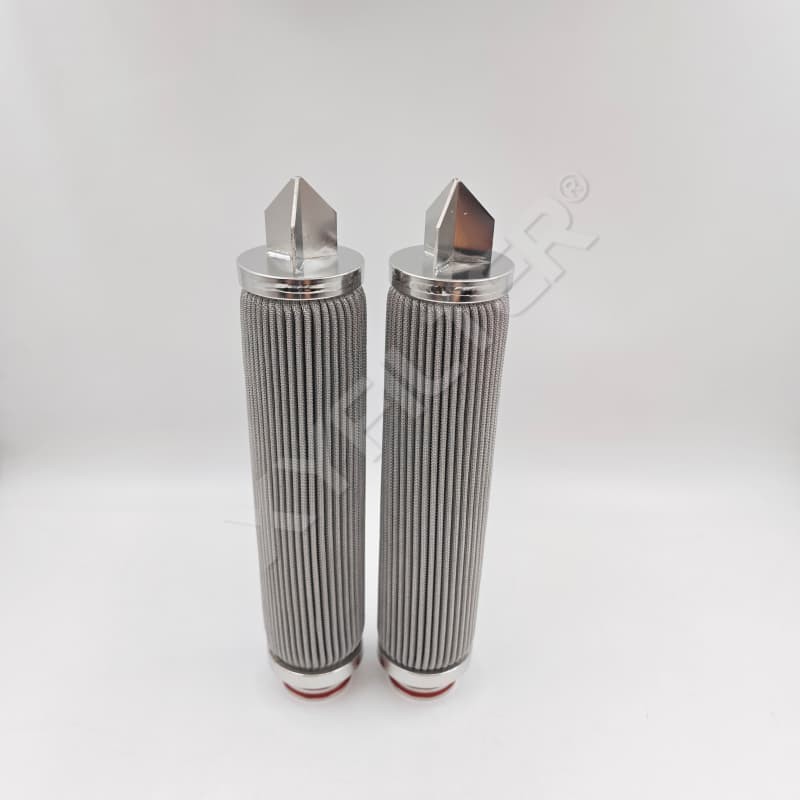

The 10-inch 222 triangle sintered metal mesh pleated filter element is made of 304 stainless steel woven mesh with a 222 triangle fin connector. Its pleated structure delivers large filtration area and high flow rate. Featuring high temperature resistance and corrosion resistance, it can be cleaned and reused. Equipped with silicone O-ring for reliable sealing, it fits various filter housings with 222 interface. It is suitable for high-temperature working conditions such as polymer melt, oil products and chemical liquids. Customization of filtration accuracy and dimensions is available.

Technical Parameters

· Filter Material: 304 Stainless Steel

· Filtration Rating: 50 Mesh

· Connection Type: 222 Triangle Fin Connector

· Flow Direction: Outside to Inside

· Seal: Silicone O-ring

· Structure Type: Pleated Metal Wire Mesh

Product Advantages

✅ Made of 304 stainless steel, acid & alkali resistant and high temperature resistant, ideal for high-temperature fluid filtration

✅ Pleated mesh structure effectively enlarges filtration area, offers high dirt holding capacity and low flow resistance

 ✅ Reusable metal mesh after cleaning & regeneration, long service life and lower replacement cost

✅ 222 triangle fin connector ensures stable positioning during installation; silicone seal prevents leakage

 ✅ All-metal construction without fiber shedding, avoiding contamination of process liquid

✅ Custom non-standard sizes and filtration ratings available, compatible with multiple filter equipment

Application Fields

✔ Chemical Industry: Filtration of chemical raw materials, polymer melts and resins

✔ Oil & Fat Industry: Purification of edible oil, lubricating oil, animal and vegetable oils

✔ Pharmaceutical Industry: Filtration of high-temperature medicinal liquids and solvents

✔ Water Treatment: Pretreatment of hot water and corrosive water

✔ Food & Beverage: Filtration of high-temperature liquid materials and syrup

✔ Others: Solid-liquid separation for high-temperature fluids such as hydraulic oil, fuel and coatings

Suitable for chemical, oil & fat, pharmaceutical, water treatment, food and beverage industries. It performs solid-liquid separation and filtration for polymer melts, oil products, medicinal liquids, high-temperature & corrosive liquids, coatings, hydraulic oil and other fluids.
