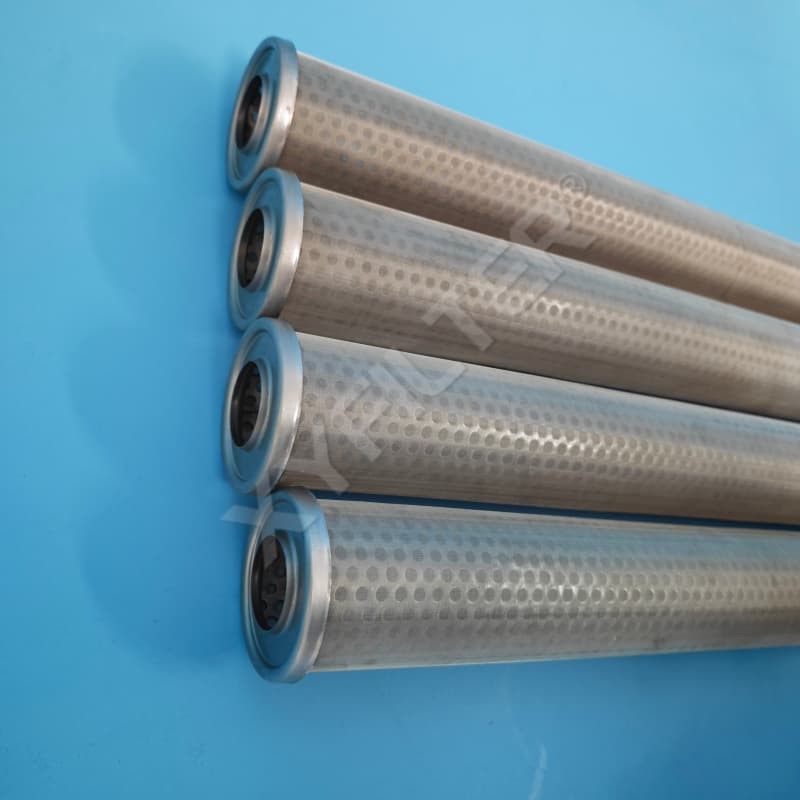

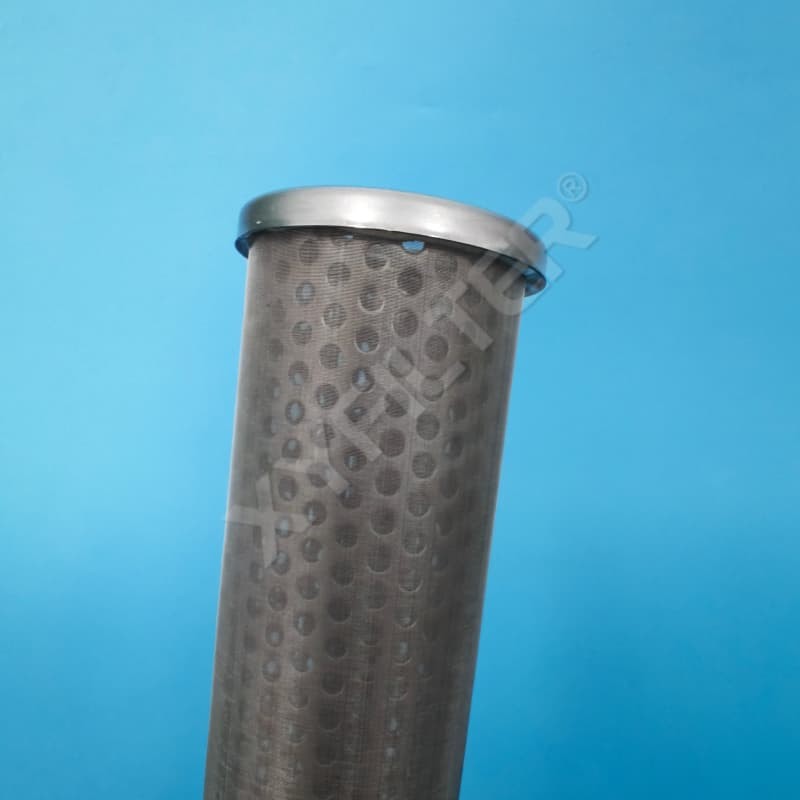

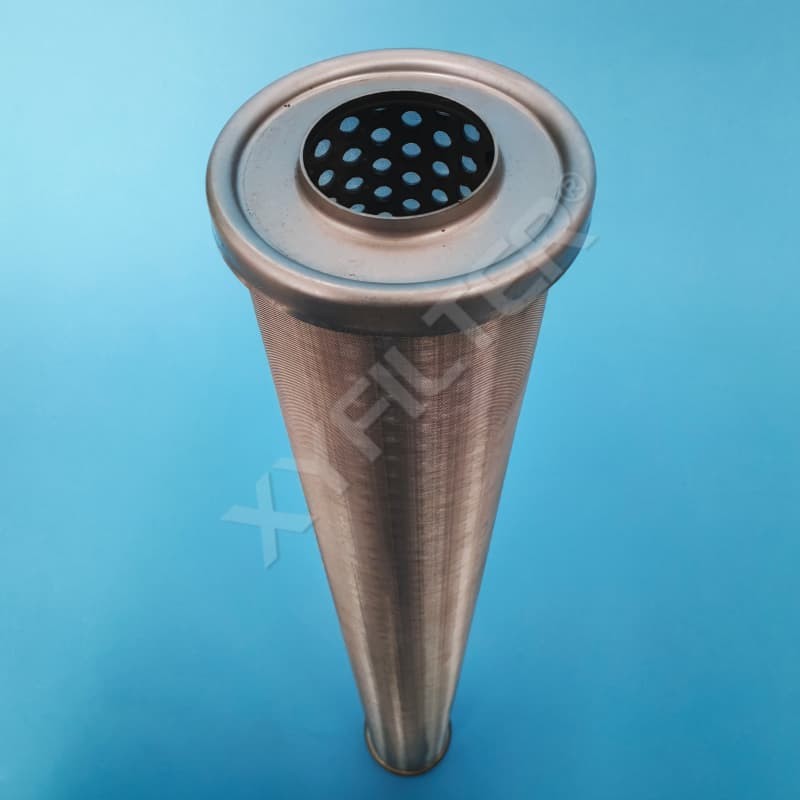

XYFILTERCustom 2mm Reinforced Support Core 100 Mesh Stainless Steel Metal Screen Filter Element

XYFILTER Custom 100 Mesh Stainless Steel Metal Screen Filter Element. It adopts a 2mm thickened stainless steel support core for high strength and anti-deformation performance. Constructed entirely of stainless steel, it features corrosion resistance and high temperature resistance, and can be cleaned and regenerated repeatedly. Designed for solid-liquid separation of fluids. Custom sizes and connections are available upon request.Product Advantages

✅ 2mm thick punched support core, pressure-resistant and non-deformable for stable support

✅ 304 stainless steel woven screen, high temperature resistant, acid and alkali corrosion resistant

✅ Reusable after cleaning to reduce long-term operating costs

✅ Perforated pleated structure with high flow rate and strong dirt holding capacity

✅ All-metal welding process, no material shedding, suitable for high-temperature working conditions

Technical Parameters

Filtration Rating: 100 Mesh

Filter Media: 304 stainless steel woven screen + 2mm thick punched stainless steel support core

Seal: Silicone / FKM O-ring optional

Working Medium: Various fluids including oil products, chemical liquids, hot water, coatings, solvents

Nominal Pressure: ≤1.6MPa

Execution Standard: JB/T 7218 Cartridge Filter Element

Application Scope

Suitable for solid-liquid separation and filtration of fluids in chemical raw materials, polymer melts, oils & fats, high-temperature pharmaceutical liquids, food syrups, high-temperature corrosive water, hydraulic oil, fuels, coatings and other industries.
