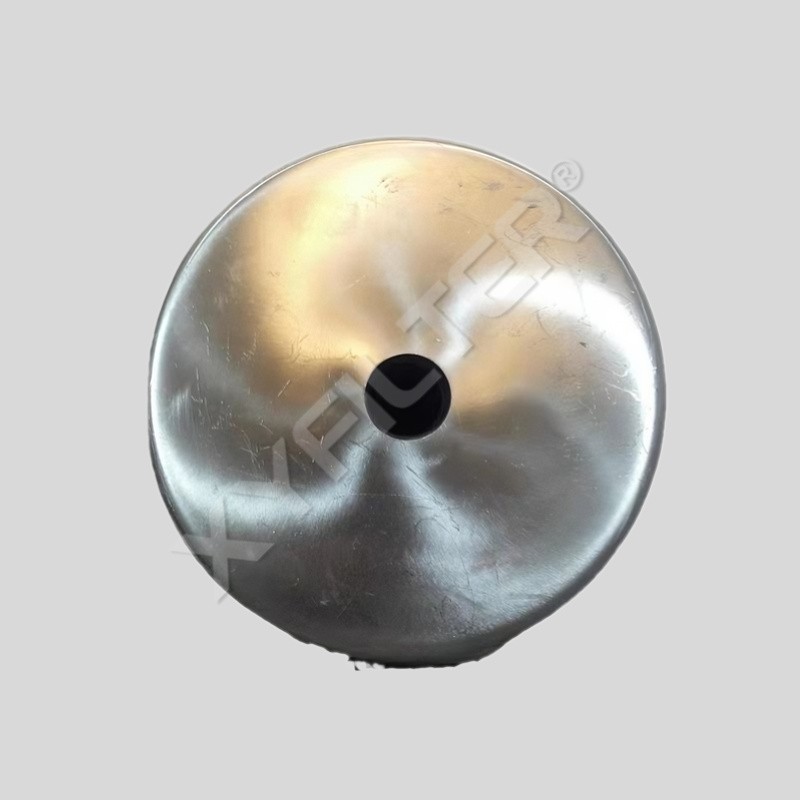

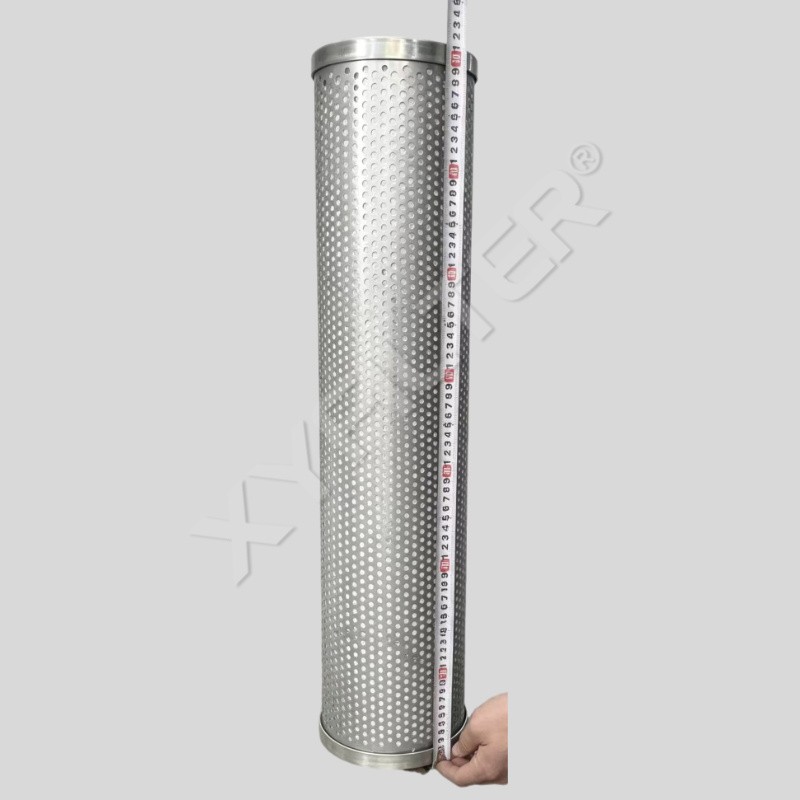

KTX-80 Acid Removal Filter

Product Introduction

KTX-80 Acid Removal Filter Element for Power Plants is specially designed for power plant oil systems. It uses adsorptive filter media to remove acidic substances from insulating oil and turbine oil, while trapping solid contaminants in the oil, inhibiting oil deterioration and protecting unit equipment.

Product Advantages

✅ Powerful acid adsorption capacity, effectively reduces oil acid value and delays oil aging

✅ Efficiently filters solid particle contaminants simultaneously to purify oil

✅ High mechanical strength, resistant to oil immersion, no powder shedding or collapse

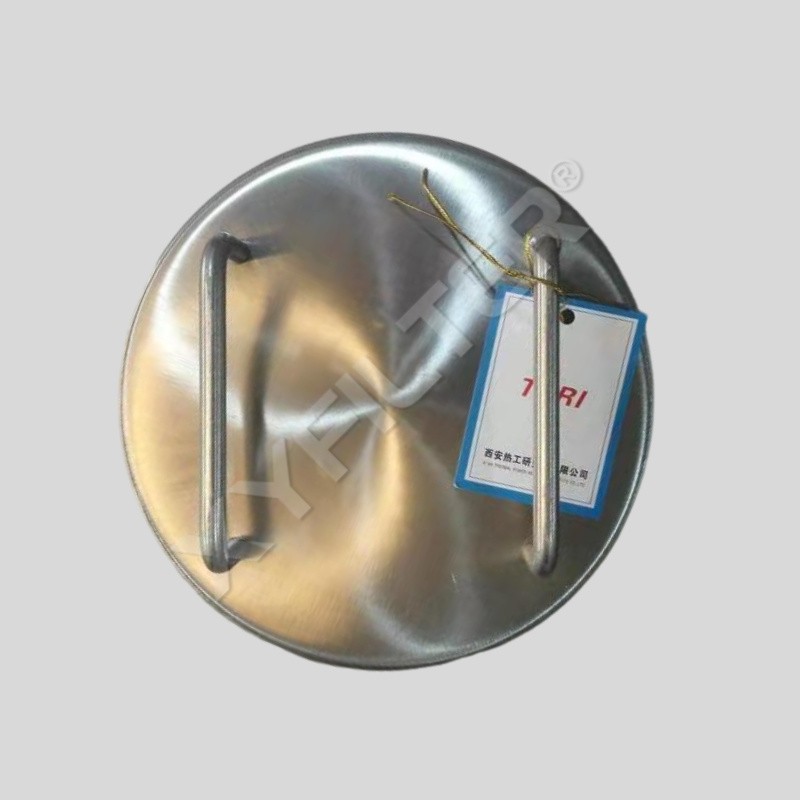

✅ Built-in handle design for easy installation, removal and replacement, saving maintenance labor

 ✅ Matches power plant oil working conditions, stably extending service life of oil and equipment

Technical Parameters

· Filtration Accuracy: 80μm

· Filter Media: Resin

· Seal: Oil-resistant rubber sealing ring

· Working Medium: Mineral oils such as turbine oil and insulating oil

· Nominal Pressure: ≤1.0MPa

· Execution Standard: DL/T 805

Application Scope

Mainly used in oil purification systems of steam turbines and transformers in thermal power plants. It removes acidic components and particulate impurities from turbine oil and insulating oil. It is also applicable to acid removal and purification of other industrial oils.
