Manufacturing Method for Stainless Steel Agglomeration Filter Cartridge ICO-FXPF-6638 Agglomeration Separation Filter Cartridge

Product Overview

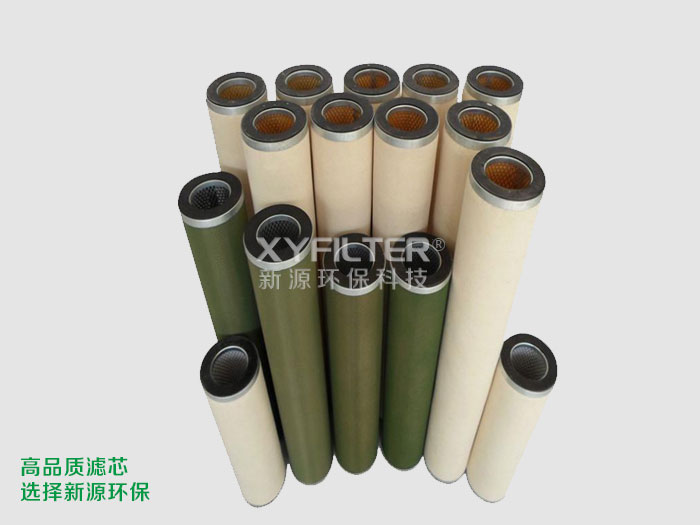

The stainless steel coalescing filter element ICO-FXPF-6638 is made of a new generation of composite glass fiber material and processed through multiple processes of Xinyuan Environmental Protection. The frame of the filter element is made of high-quality stainless steel. To meet the needs of filtration, New Source Environmental Protection has equipped the ICO-FXPF-6638 filter element with a rubber sealing device, which can prevent the leakage of impurities inside the filter element and ensure the cleanliness of the external filter.

Product Parameter Table

Model: ICO-FXPF-6638

Brand: Xinyuan Environmental Protection

Delivery time: 5 days

Filtering accuracy: 0.1-100 μ M

Filter medium: oil, water, air

Filter element type: coalescence filter element

Outer diameter: 3.5 inches, 4.5 inches, 6 inches;

Length: 16,18,20,32,36,40,72 inches

Filter skeleton material: stainless steel and carbon steel

Initial pressure difference ≤ 0.15psig

Replace pressure difference<0.6psig

Working temperature 0-150 degrees Celsius

Xinyuan Environmental Protection is a professional enterprise that produces engine oil filter elements and air filter elements. In addition to the above parameters, customized production can be accepted based on user parameters. Welcome to consult.

Product Advantages

Efficient polymer materials

The flow rate through the condensing element can reach up to 60%.

The separation capacity of lotion and MFN is less than 20 DIN/cm.

Constant output quality

Due to uniform flow distribution, the flow rate through the filter element increases.

In the presence of surfactants, the material will not lose its activity.

Product Application

1. Remove water from petroleum products: gasoline, diesel, kerosene, and liquefied petroleum gas.

2. Separate water and hydrocarbon condensate, refining intermediates, naphtha, propane, and propylene.

3. Remove moisture from aromatic hydrocarbons.

4. Oil water separation.
